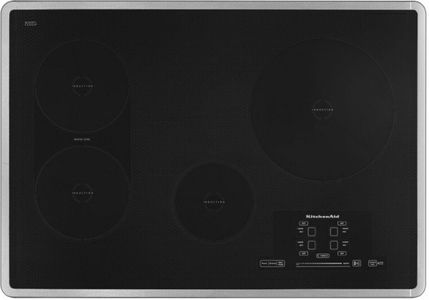

KitchenAid® Architect® Series II 30" Stainless Steel Induction Cooktop


Model #:

KICU509XSS

Model #: KICU509XSS
8333
KitchenAid
$2,114.00

At a Glance

Product Dimensions 3.13"h x 30.75"w x 21.31"d

This 30-inch induction cooktop uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. A bridge function lets you combine the power of two elements into one large cooking zone for specialty cookware such as a griddle or oval pan.Read More

Sale $2,114.00

$2,349.00

Save $235.00

Availability

Limited Availability For home delivery or scheduled pickup
My Store:2300 W Fullerton Ave Chicago IL United States 60647
Add zip code to view locations nearest to you

Items in-stock are available for scheduled delivery or scheduled pick-up at certain locations. Please contact locations prior to traveling to a location for pick-up.

View Delivery & Pickup OptionsAdd Zip Code

What We Offer

Protect Your Purchase

View Options

None Selected
Services

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

2 Elements with Bridge Function

Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.

12 Heat Level Settings

Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.

4-Element Cooktop

Provides four independent cooking surface areas.

Performance Boost

Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling

Melt and Mold

Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.

Touch-Activated Controls

Integrate seamlessly into the surface and include a slider for heat-level selection

Simmer Function

Automatically selects a low power level to help maintain a constant simmer without boiling over.

Pan Size Detection

Provides feedback on whether pan size is suitable for the selected element.

Control Lock

Helps prevent unintended use and makes it easier to clean the control panel

Useful Documents
Specifications

General Specs

ColorStainless Steel
Element TypeInduction
Fuel TypeElectric
Depth (in.)21.31
Height (in.)3.13
Width (in.)30.75
Manufacturer Warranty1 Year
Appliance Fit Width (in.)30
CollectionArchitect® Series II
Color Finish NameStainless Steel
ADA CompliantNo
ENERGY STAR CertifiedNo
Number of Elements Burner Cooking Zones4
Commercial Use ApprovedNo
Smart CompatibleNo
Smart Home WifiNo
Number of Elements/Burners4
Downdraft VentilationNo
Voltage240
Frequency60
Amp40/50
Cooktop FeaturesHot Surface Indicator Light, Door/Child Lock, Bridge Element, Pan Presence Sensor
Cooktop Surface StyleGlass-Top
Cooktop SurfaceCeramic Glass

Appearance

Digital DisplayYes

Dimensions

Cutout Depth19-5/16 in
Cutout Width29-1/2 in

Cooktop Details

Left Rear Element-Burner TypeBridge
Right Rear Element-Burner Power3700W/2300W
Left Front Element-Burner TypeBridge
Hot Surface Indicator LightYes
Cooktop Surface MaterialCeramic Glass
Heating Element On Indicator LightYes
Automatic Pan DetectionYes
Right Front Element-Burner Power1800W/1400W
WarningProposition 65 Warning for California Residents
